Moving Floor Transfer Trailer

Moving Ahead

The moving floor transfer trailer from MAC Trailer features horizontal unloading for flexibility and structural durability. The moving floor trailer can be unloaded without a tipper platform or in areas with height constraints. This durable, all-aluminum transfer trailer is a favorite for the MSW, recycling, agriculture and wood chip industries. Enjoy hauling versatility with the ability to unload essentially anything, anywhere.

Request more info

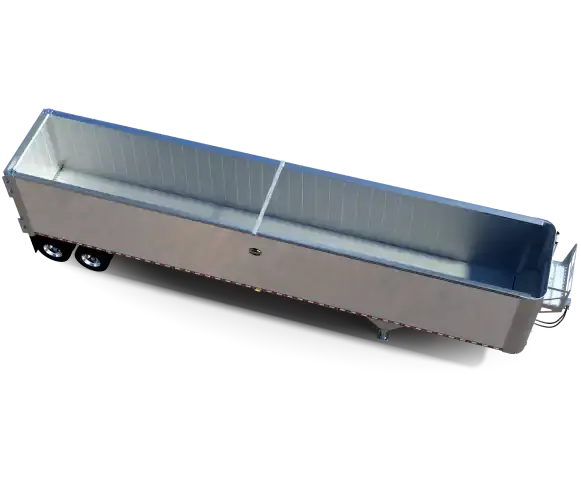

Horizontal

Unloading

Unlike other transfer trailers, moving floor trailers can be unloaded horizontally to go places a tipper cannot. This adds flexibility when unloading your haul. Simply pull up to the site and unload the trailer with ease. Covered spaces, power lines and sites without tipper platforms are no match for the moving floor trailer.

Safe and Efficient

Handling

Reduce rollover risk and ensure smooth, controlled unloading with moving floor trailers. Instead of being hoisted, the moving floor systems safely move materials out along the trailer bed. Ideal for a wide range of applications, these trailers handle materials such as MSW, agricultural products, recyclables, scrap, and more, with optional leak proofing and floor designs for added versatility.

Moving Floor Specifications

Material	6061 Extruded Aluminum
Sheet & Post Sidewall	.190 Wall Thickness is Standard, .165 & .200 are Optional
MVP Sidewall	15.5” W X 2.25” D with .150 Inner Wall Thickness is Standard, .200 Thickness is Optional
Flooring	Keith Walking Floors are Standard, Hallco Industries and Cargo Floor are Optional
Bottom Rail	Hollow Core 6061 T6 Extruded Aluminum Engineered to Protect Lights and Enclosed Wiring Harness from Weather and Road Debris
Top Rail	Standard and Heavy-Duty Available

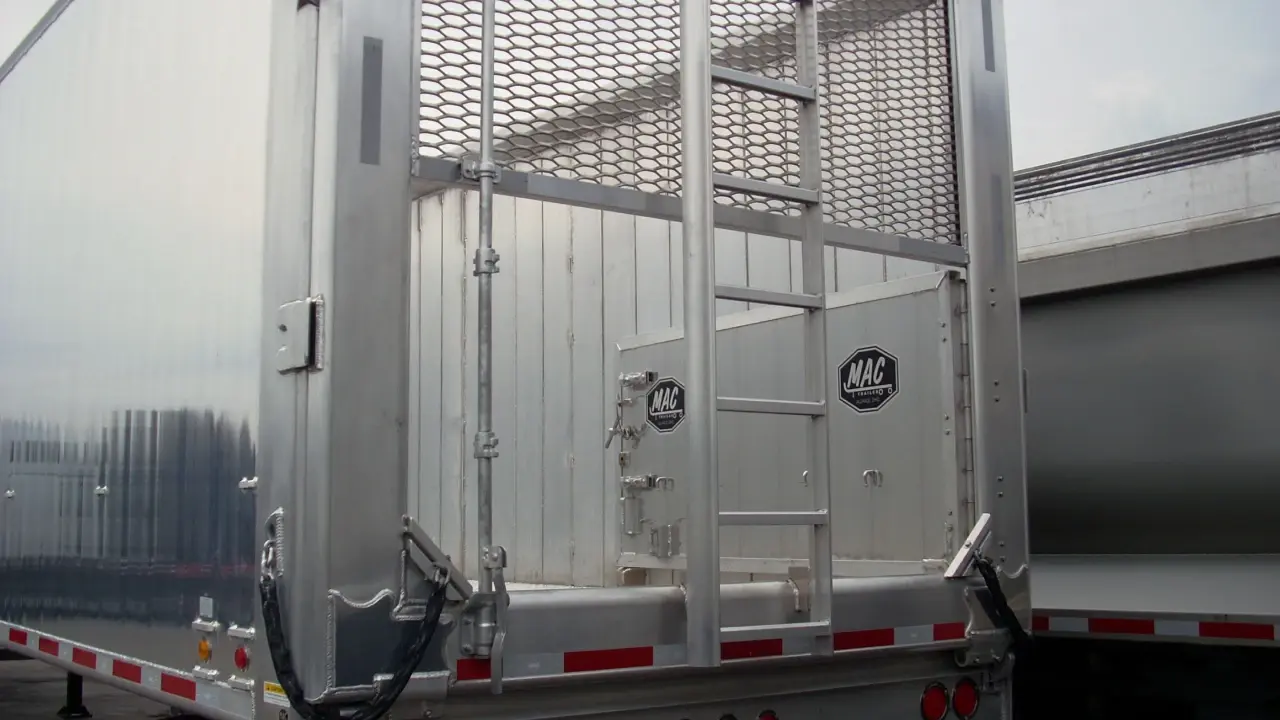

Gate	Side-Swing .150” Hollow Core Panel Gate with Mechanical Latch
Landing Gear	Jost H451 Galvanized Steel Dollies are Standard. Holland is Optional
Suspension	MAC Galvanized Spring Ride, Hendrickson Air Ride
