Aluminum
Construction

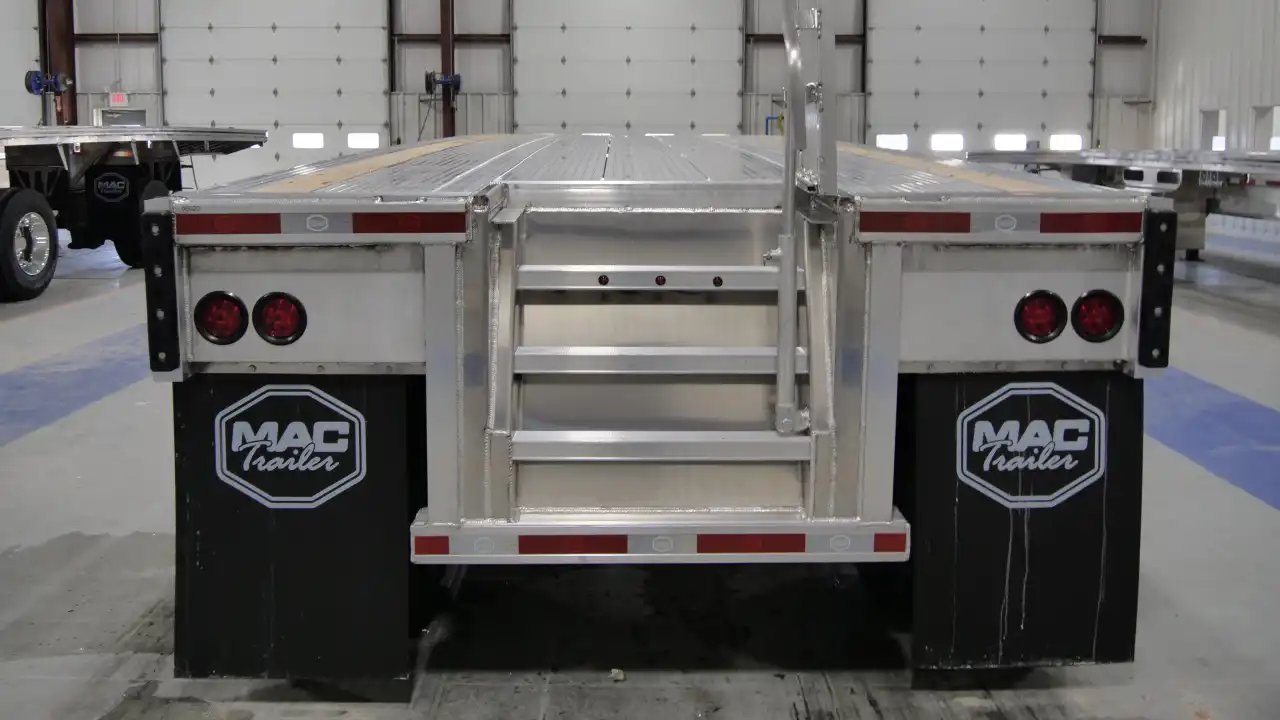

Outfit your fleet with efficiency you can count on. The standard flatbed trailer is completely made of aluminum for lightweight benefits. There are several beam sizes available to customize the trailer for your intended load and freight. Want to step up your haul? Configure your platform trailer with the optional MAC Step Up™ feature.
Reduce Your Total
Cost of Ownership

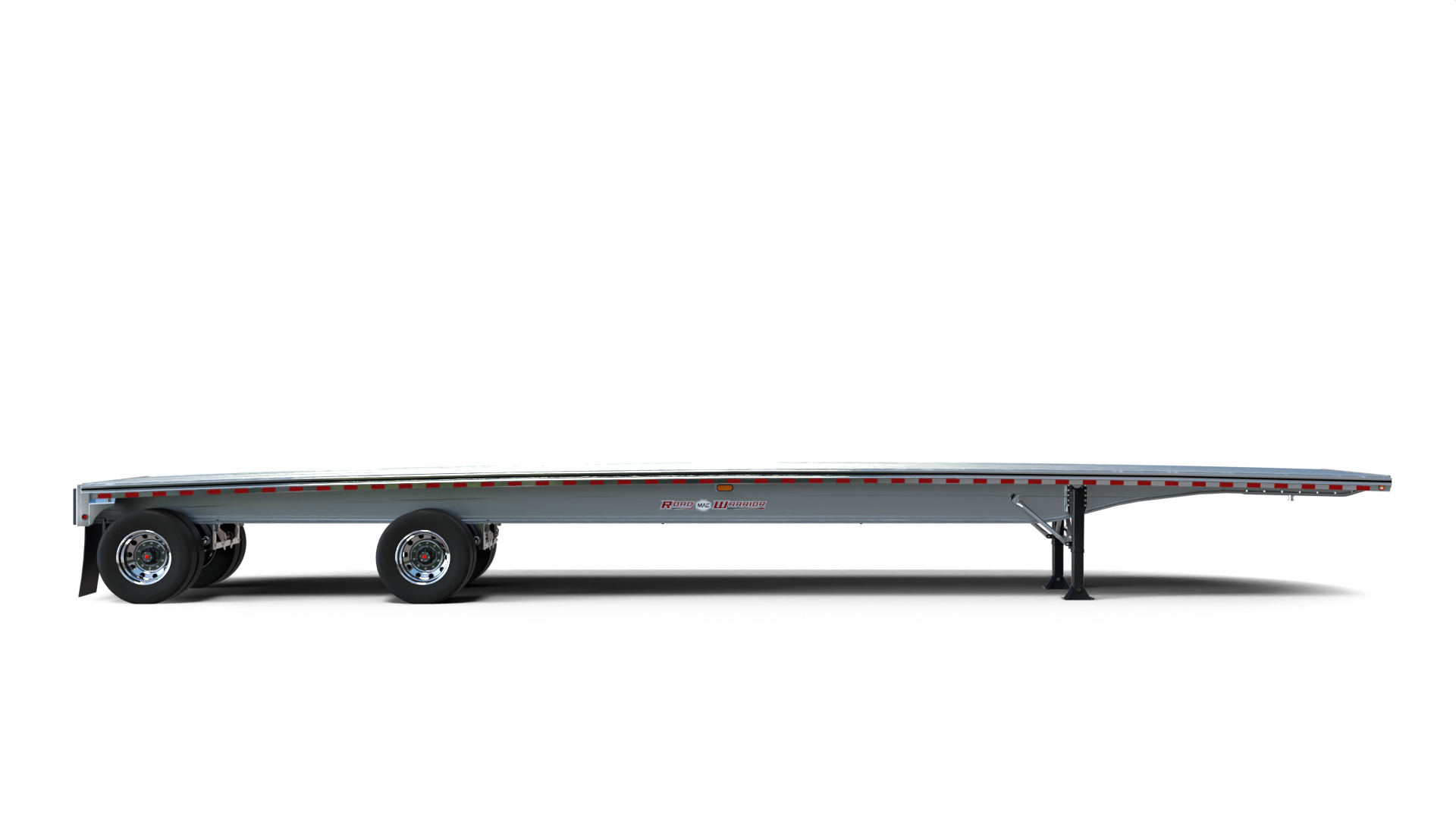

Built to earn its name, the Road Warrior flatbed is a battle-ready platform trailer that goes the distance. Fleet owners count on its all-aluminum build for corrosion-proof design and low maintenance. No frills. Less downtime. Just a dependable flatbed workhorse, often on the ground and ready to roll. When the haul is tough and the clock is ticking, the Road Warrior keeps your fleet moving.
Standard Flatbed Specifications
| Material | 6061-T6 Aluminum |
|---|---|
| Main Beam | (2) T-Sections that are Assembled with Center Axis Weld Provides Minimum Stress to Frame Beams |
| Side Rail | 6-3/4” Tall Open Backed Extrusion is Standard, 7” Heavy Duty Hollow Core Extrusion is Optional |
| Flooring | 1-1/4” Extruded Hollow Core Tubular Sectioned with 1-1/4” Web Section and Knurled Top Surface. (2) Apitong Nailers Positioned Along Side Rail |
| Crossmembers | 5” Tall Channel with 2” Capped Top Flange and 2” Bottom Flange Standard 16” O.C. Spacing |
| Lighting | Grote Ultra Blue Seal Harness & Wiring, LED Lighting, (5) Markers per Side. Rear lights (3) Large / (3) Small / (3) Large with Center Mid-Turn |
| Landing Gear | Jost AX150 with Drive Handle, Offers 55K Lift, Artic Grease, No-Lube, 10 Year Jost Warranty |
| Suspension | Hendrickson AANT-230 Tandem 122” Spread with Hendrickson Axles, TP Bearings (Same Large Inner and Outer Bearings) and Oil Bath Hubs |
.webp)

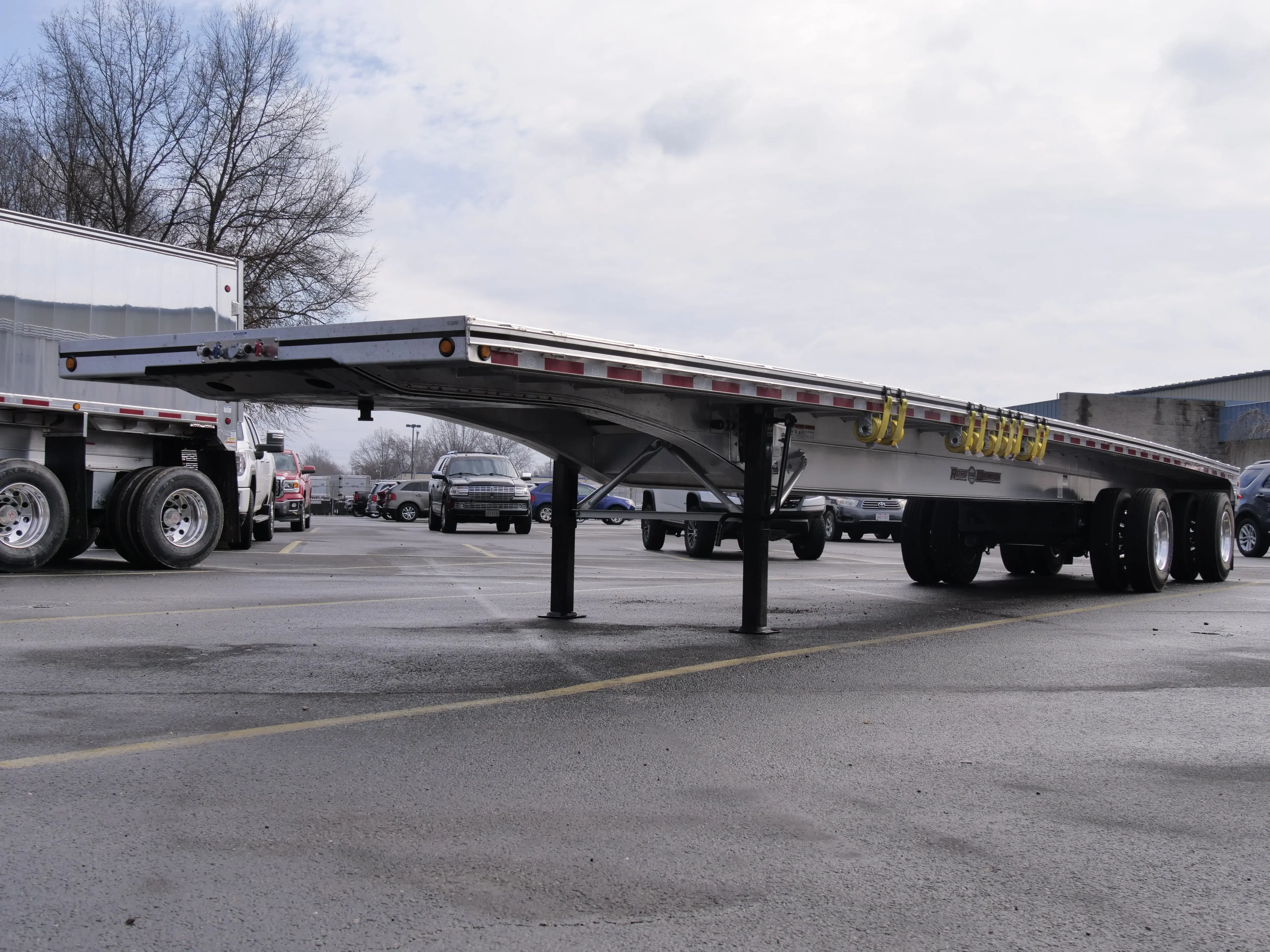

Load Securement Options
Rear Entry Stairway
.webp)

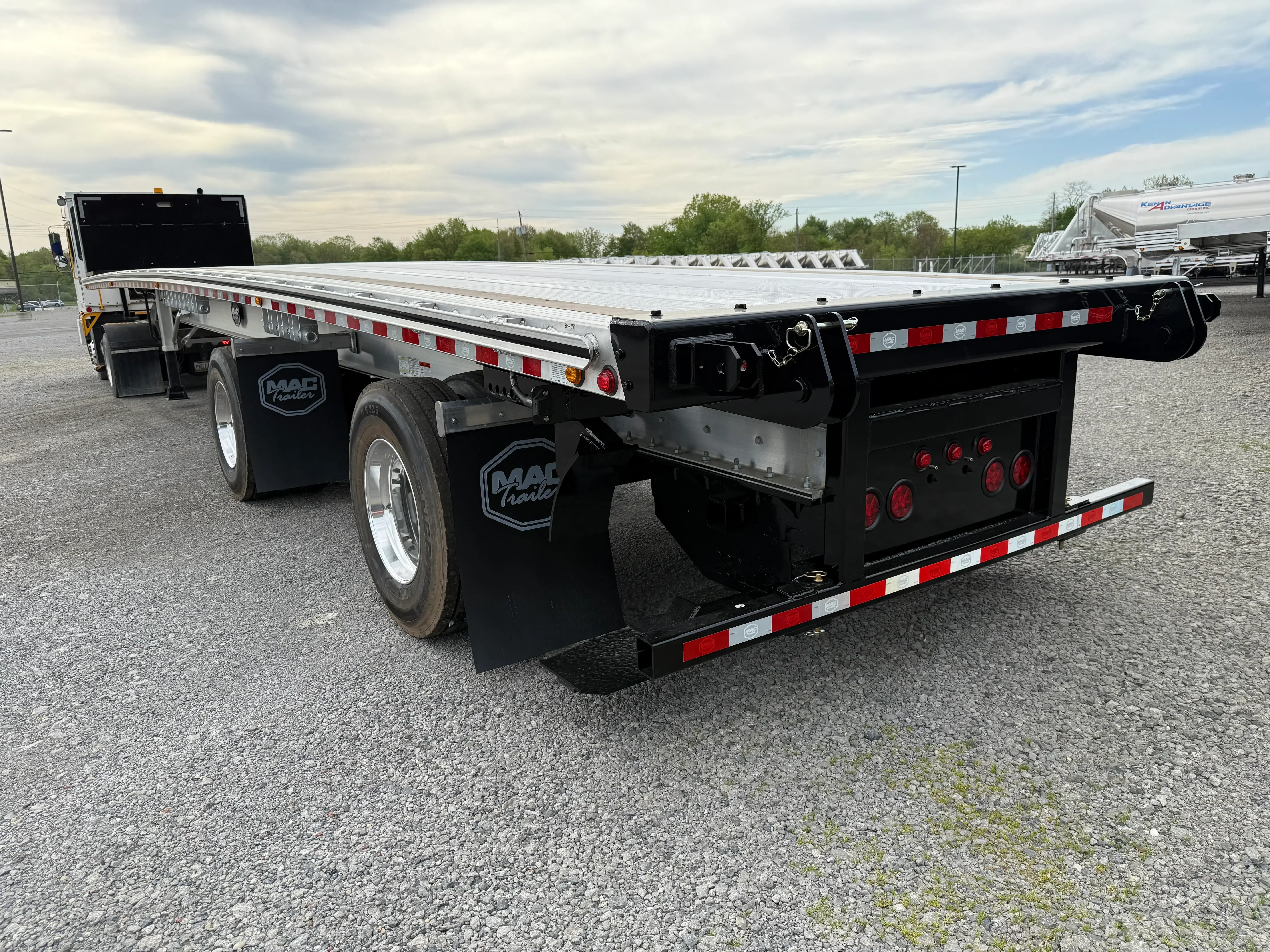

Moffett Kit
Tool Boxes

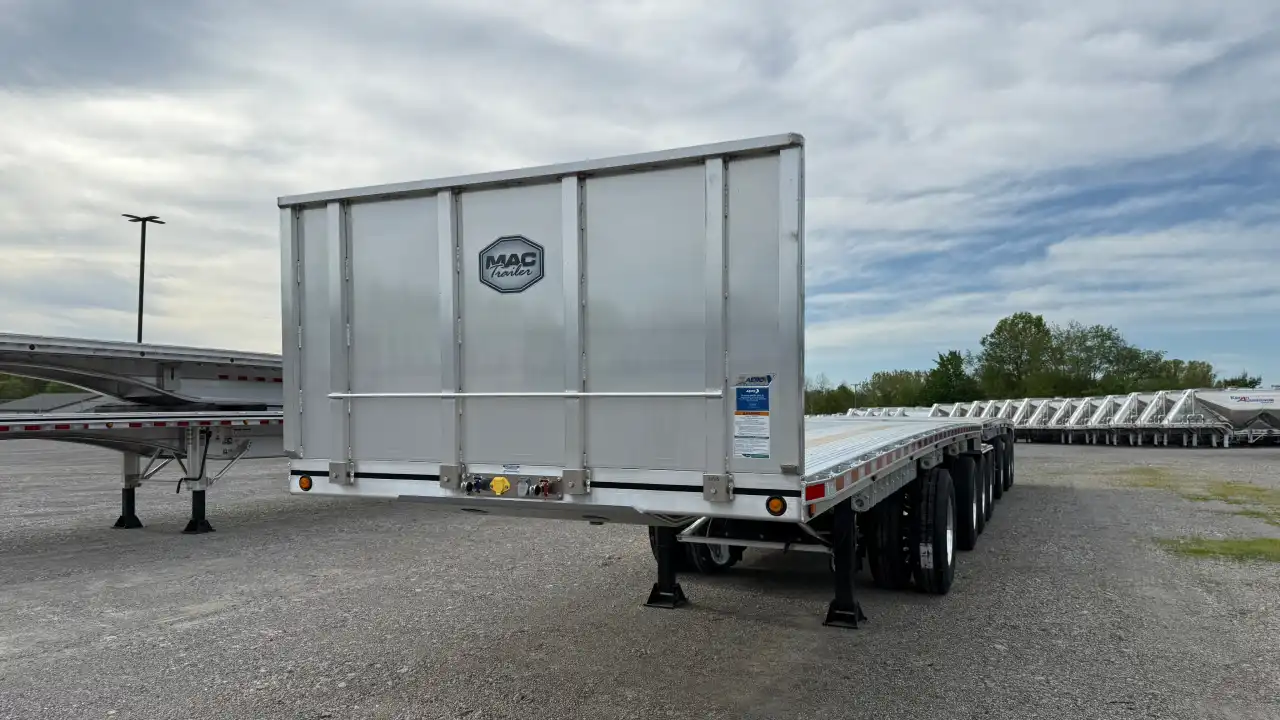

Bulkhead

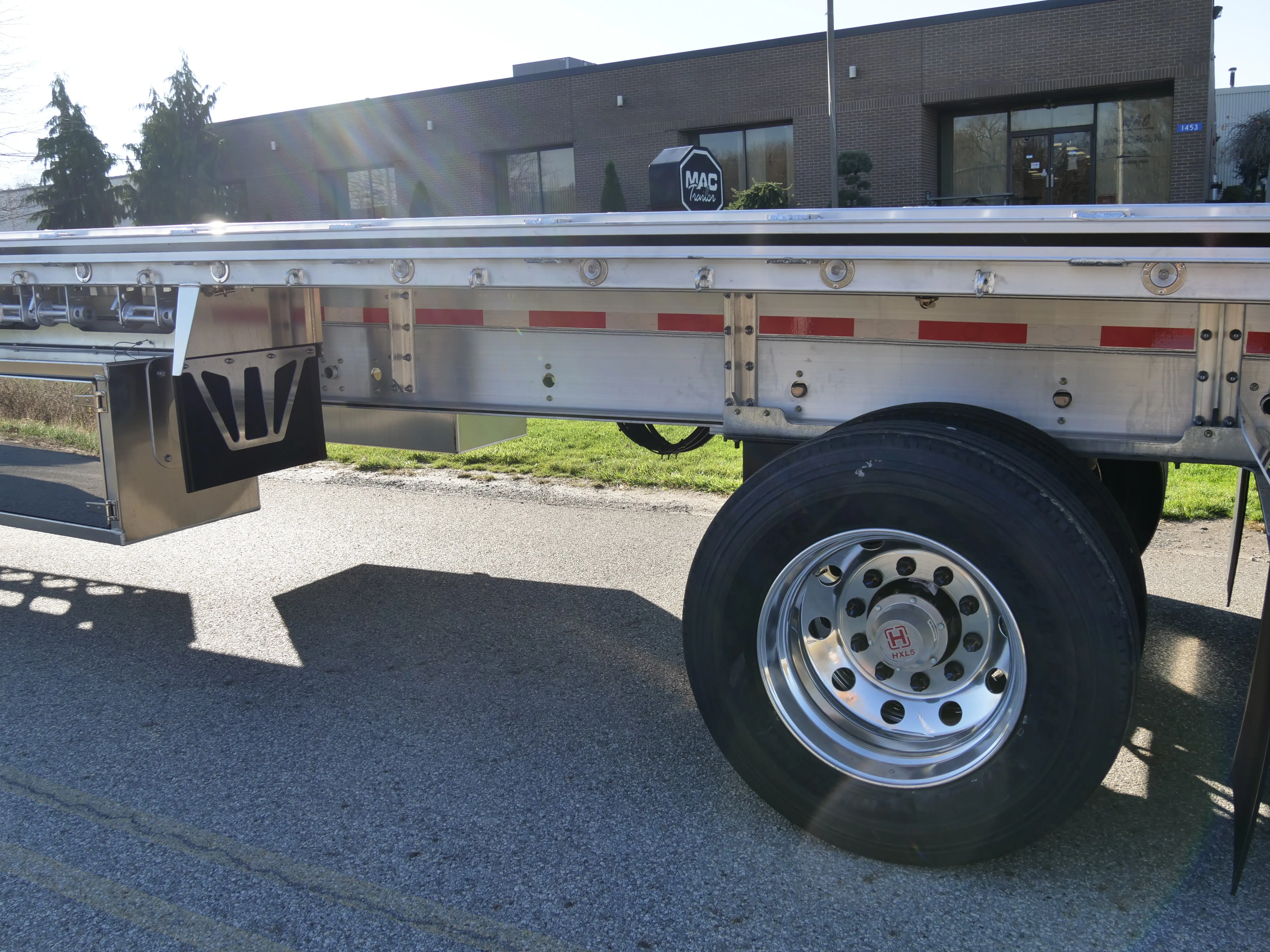

Rear Axle Slide
Specialized for your needs
Load Securement Options
Load Securement Options
Rear Entry Stairway
Rear Entry Stairway
Moffett Kit
Moffett Kit
Tool Boxes
Tool Boxes
Bulkhead
Bulkhead
Rear Axle Slide
Rear Axle Slide
